BM-1 Bluetooth battery monitor BM-1 (BT) Bluetooth Battery Monitor for Android*
When you need a battery monitor but don’t have space for the display or routing the cables would be a nightmare, there is now a solution. The BM-1(BT) will monitor your boat or caravan’s lead-acid batteries and transmit the data directly to your mobile phone, or tablet, wirelessly by bluetooth.

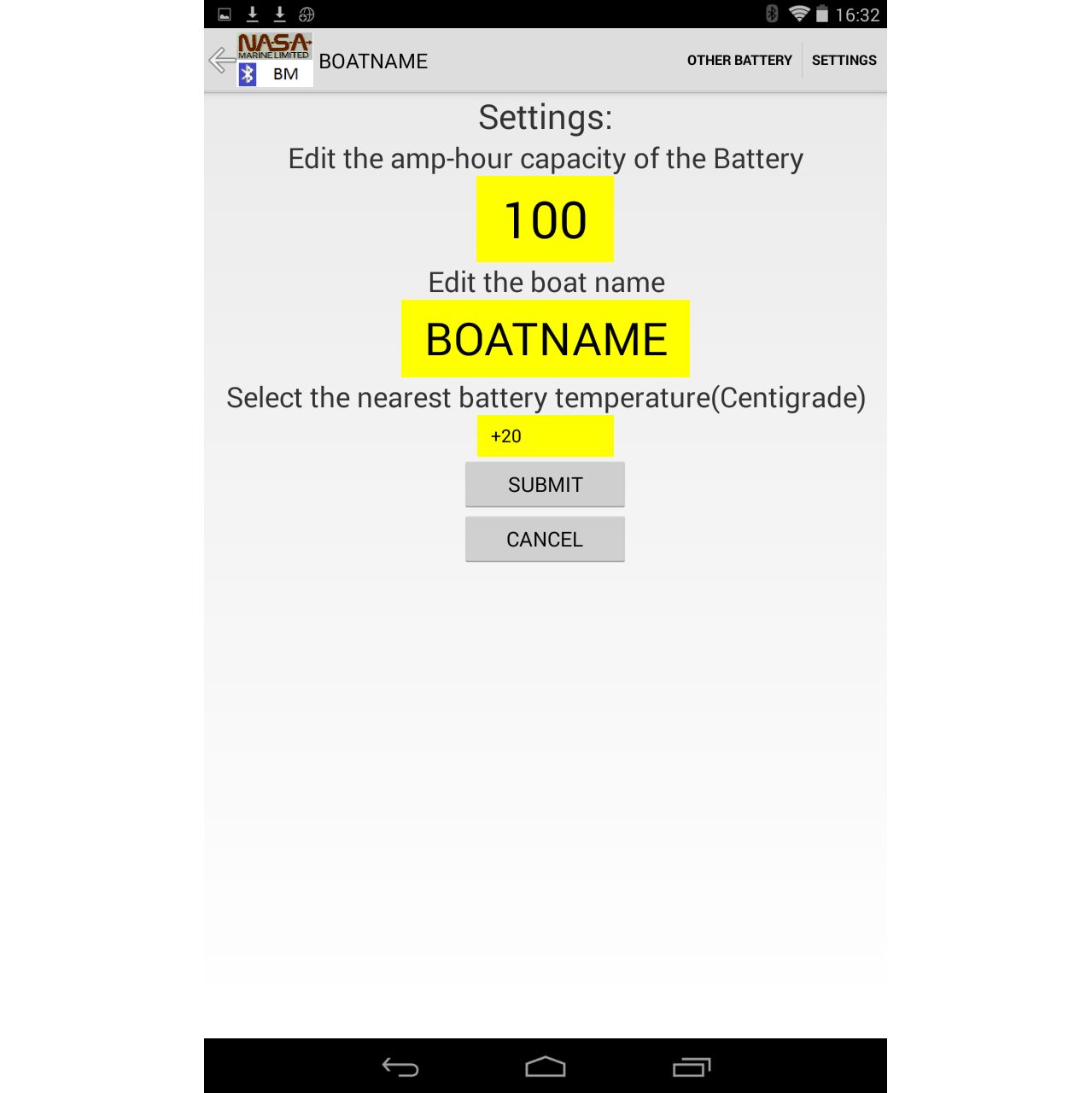

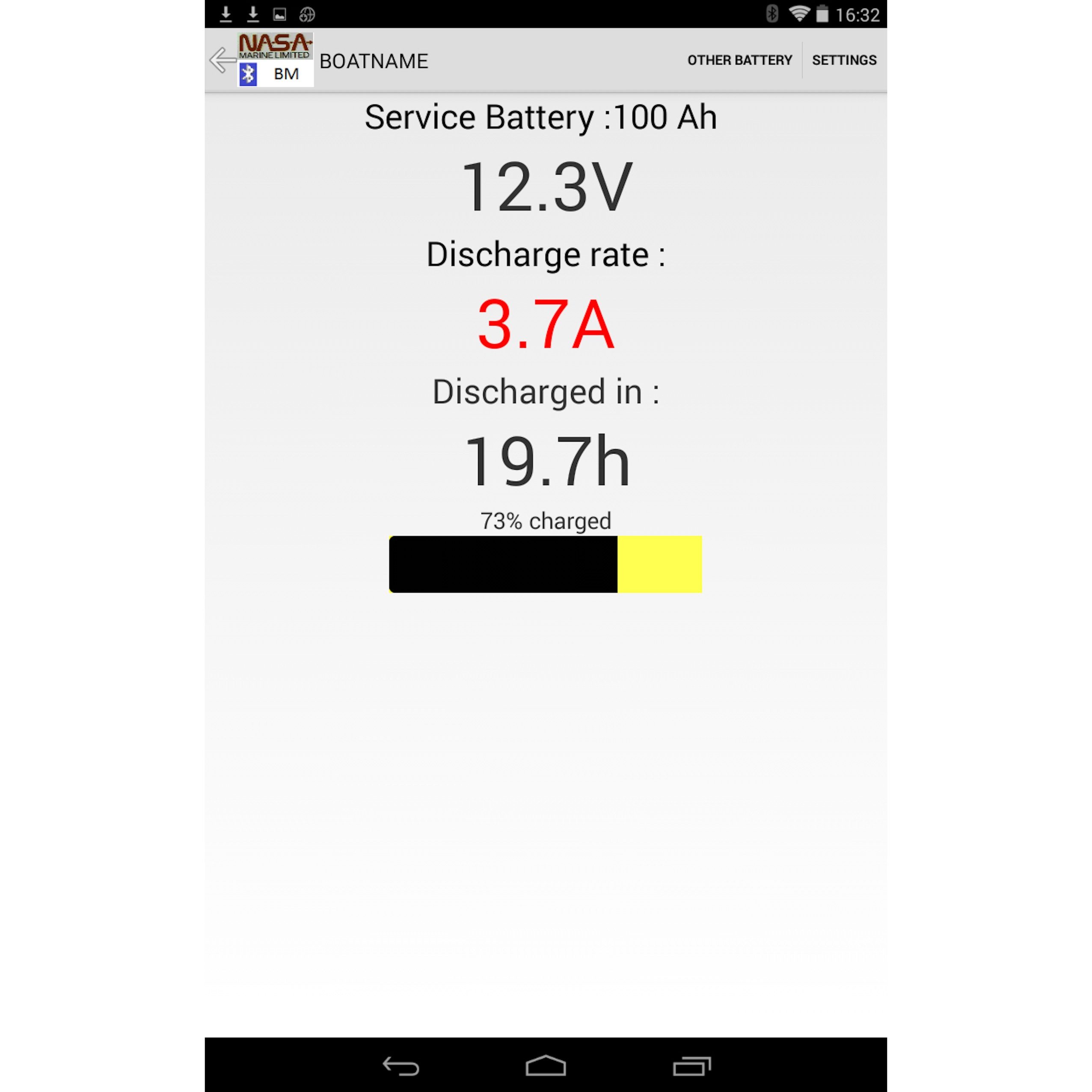

A simple Android app, freely available from the Google Play Store, (requires Android V4.3 or later) shows your service battery voltage, current flowing in or out, state of charge and time to charge or discharge the battery. An audible alarm warns if the battery level gets dangerously low. It will also show the starter battery voltage.
For Apple users a simple, low cost optional app is available here IOS Battery monitor
Supply voltage : 8 – 16 Volts DC
Supply current : 2.0 milliamps
Battery capacities : 5 – 600 AMP Hour
Load current : 100 AMPS Maximum
Charge current : 100 AMPS Maximum
Shunt Standard : 50 millivolt @ 100 AMP (120 x 28 x 31mm)

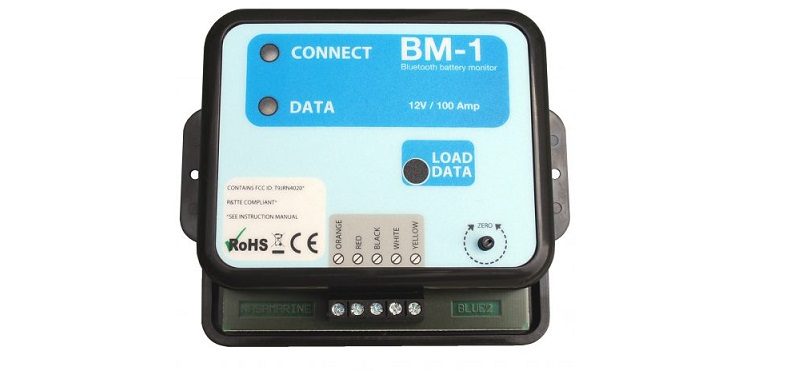

Monitor unit with L.E.D’s for power and data
Monitor dimensions : 112 x 93 x 22mm
