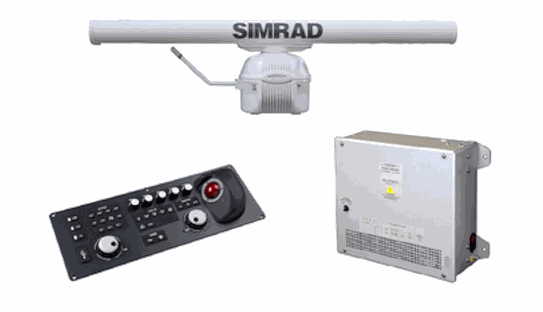

Professional, type approved X-Band radar system. Includes 9/6-foot antenna and 25 kW up-mast transceiver, performance monitor, core unit, multifunction keyboard, interswitch, and 100 target ARPA plus 300 AIS targets. 6/9-foot antenna, 12 kW transceiver, and High Speed Craft (HSC) options also available.
Features
- 25 kW X-Band up-mast transceiver with 9/6-foot antenna
- Includes performance monitor, core unit, multifunction keyboard, and interswitch
- 100 target ARPA plus 300 AIS targets
- Modular and solid state construction for ease of maintenance and servicing
- Shared components with Argus S-Band reduces on board spares and assures availability with our world-wide after sales and service network
- Low noise amplifier providing a reduced overall noise figure
- IMO type approved
- Seamless use of up to four antennas combining X and S band with interswitching capability
- 19-, 23- or 26-inch widescreen LCD TFT desktop or flush-mount monitors available
- Optional special application add-ons: Oil Spill, Small Target Detection, and Ice Detection
Specifications
- Humidity : + 40 deg C 93% rel humidity
- Min Range, scale : 0.125 NM
- Compass Safe : 1.35m (4.4ft)
- Max Wind Speed : 100 kts
- Rotation speed : 20 or 40 RPM
- Supply Voltage : 230/110 VAC 50/60 Hz
- Warranty Period : 24 Months
- Power Consumption typical : 300 W
- Power Consumption max : 500 W
