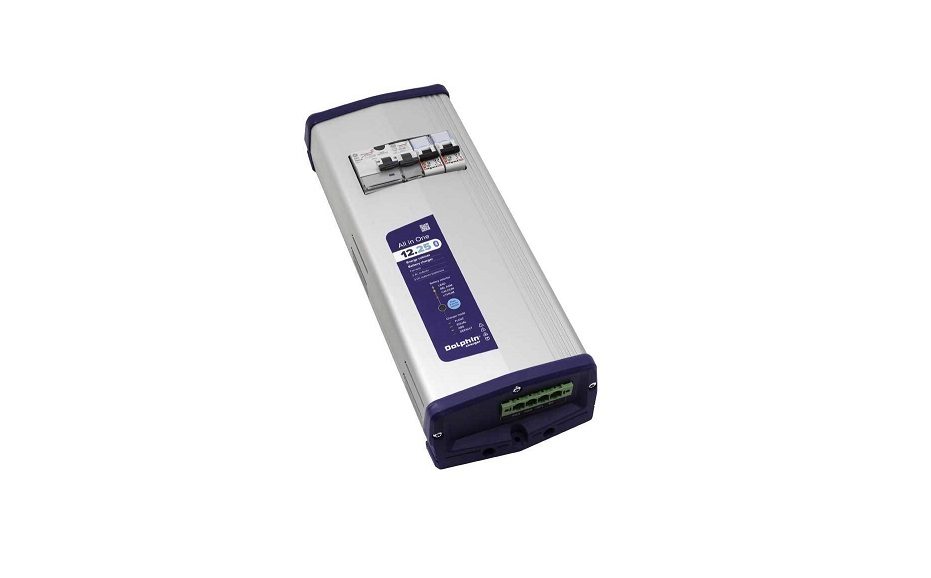

This complete energy cabinet combines a battery charger, 30mA differential protection and a 220V (2 outputs) switchboard in a single, connected box. A simple and more compact product than ever for quick installation onboard your sailboat.
New in 2020: much smaller size and mobile connectivity with the Dolphin Connect App to track charging performance from your smartphone.
Features
- The Fourth Generation All-In-One is more compact than ever 40% space saving.
- The new All-In-One product use the new ProLite fan less 12V 25A electronic.
- This fourth-generation device offers perfect AC safety with one main circuit breaker including RCCB 30mA protection 30mA and two 10A AC circuit breakers.
- ALL-IN-ONE products are equipped with extremely strong industrial AC and DC connectors.
- The All-In-One device allows marine electrician, or boat builder to carry out a complete electrical installation quickly and cost-effectively in accordance with ISO13297.
- Built-in Bluetooth 12V 25A triple outputs charger 4 charging programs for all types of batteries including GEL and AGM, lead acid or lithium LFP.
Specifications
AC Main power :
- Voltage : 230V +/- 10%
- Frequency : 50 – 60Hz +/- 10%
- Charger max current : 2,0 Amp
Battery charger :
- Voltage : 85V – 265V
- Frequency : 50 – 60Hz +/- 10%
- Number of outputs : 3 isolated outputs
- Max. current : 25A / 300W +/- 5%
- Display : 3-colour LED, Push Button and smartphone via DolphinConnect App
AC auxiliary output :
- Number of outputs : 2
- Max. current : 10A total
General :
- Operating T° : -10°C to +55°C
- Storage T° : -20°C to +70°C
- Relative humidity : Max. 90% (without condensation)
- Dimensions (mm) : 82 x 142 x 381
- Weight : 2,4 kg
