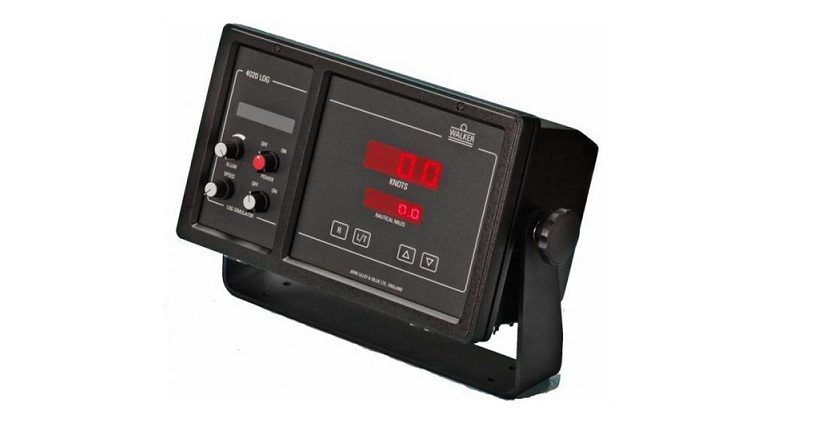

Walker 4020 Mk2 is a compact EM Speed Log for smaller vessels which require a “Wheelmarked” MED Type Approved system in a minimal package reducing the size and number of sub-units required. This results in a smaller, lighter system which is simpler to install. The 4020 combines the electronics unit with the speed and distance indicator in one master unit which may be console or bracket mounted.
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 94
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 95
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 96
Warning: Trying to access array offset on false in /var/www/html/marcom.itvally.com/wp-content/themes/flatsome/woocommerce/single-product/product-image.php on line 97
Features
- Full compatibility with most Walker
flush fitting, fixed or retractable
speed log sensors and hull fittings. - Digital Speed and Distance Run
displays by red LED dimmable
indicators. - Multipoint speed calibration as
speeds from up to 60 knots. - Removable keypad “calibrator”.
- Built-in Speed Simulator.
- NMEA 0183/RS422 and 200 ppnm
outputs to other ship systems. - Repeater indicators to DIN144
standard (optional). - Simple to install, operate and
service. - EM Speed Log technology drawn
from over 30 years’ experience.
Specifications
- Speed log sensor and hull fittings with sea valve : 387 (W) x 165 (D) x 578 (H)
- Speed log sensor and hull fittings without sea valve : 152 (Ø) x 178 (H)
- Sensor (fixed), supplied with 50 metr cable : 9.0 Kg (Steel) 9.0 Kg (Alloy)
- Speed Range : -20 to 60.0 kts
- Voltage : Standard 24 v DC +10% -20% (20W)
Brochures/Product Link
Walker 4020 Mk2
